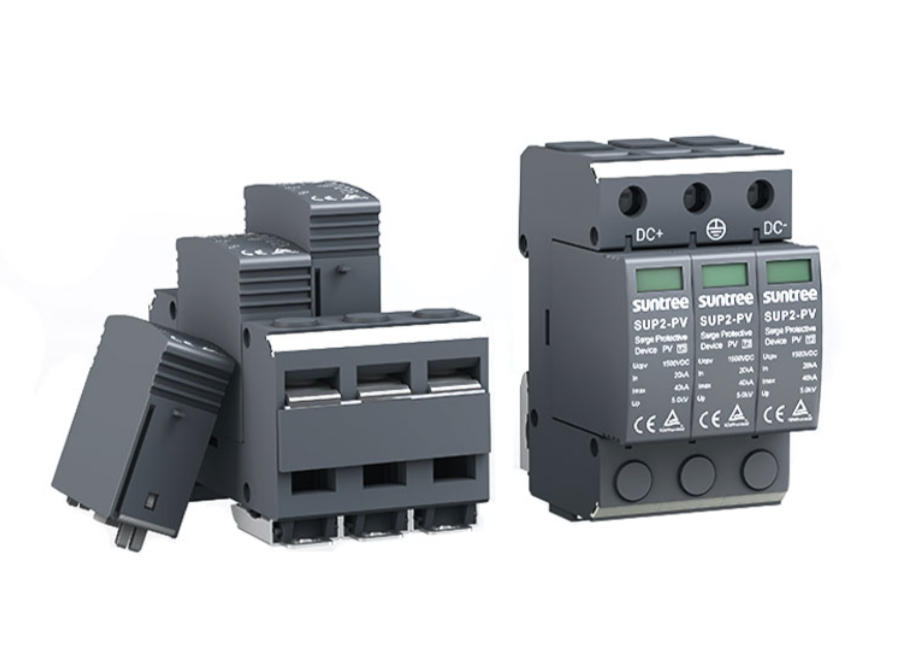

Suntree PV Surge Protector
Suntree PV Surge Protector
Couldn't load pickup availability
Share
Product Description
Product Description
Series of DC-rated surge protection devices designed for photovoltaic and energy storage systems, providing over-voltage transient suppression to safeguard solar arrays, inverters, combiner boxes, and battery circuits. Includes models rated for up to 1500 VDC with multi-pole protection options and visual status indicators. Durable construction for outdoor or indoor PV installations with DIN-rail or panel mount compatibility.
Key Features
Key Features
* High DC surge protection — designed to limit damaging overvoltage in solar PV DC circuits.
* High voltage ratings — supports systems up to 1500 V DC (for SUP2-PV, SUP2H1-PV and Type-2 variants).
* Robust discharge capability — up to 40 kA maximum discharge current (8/20 µs).
* Effective protection level (Up) — keeps transient voltage stress within safe limits to protect sensitive PV components.

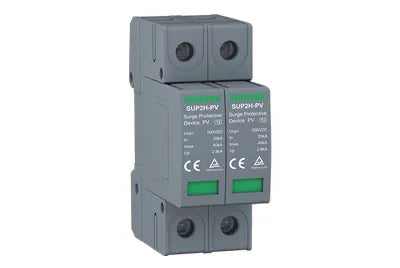

* Multi-pole configurations — 3-pole or 2-pole options to match system wiring and protection needs.
* Visual status indicators — easy at-a-glance health check with green (good) / red (replace) flags.
* Optional remote contact signaling — supports external monitoring or alarm interfaces (floating changeover contact).
* Safe isolation & shunting — combined disconnecting and shunting device reduces risk of DC arcs and fire hazard.
* Compact DIN-rail mountable design — installs neatly in PV combiner boxes or DC distribution panels.
* Fast surge response (<25 ns) — quick reaction to transient events to protect PV system components.
* Standard compliance — built for PV systems in accordance with IEC surge protection requirements.
